Module 5

Basic data visualization in RStudio

R is very commonly used in scientific research for statistical analysis and data visualization for many different types of data modalities.

R is a programming language, whereas Rstudio is an Integrated development environment or IDE.

The goal of an IDE is to provide a single environment for writing and running code, troubleshooting/debugging, package management as well as rendering visualizations.

In this workshop, we will primarily be using R/Rstudio for data visualization. I will quickly get to handling real tabular data and creating plots while explaining some basic concepts along the way. However, if you would like a comprehensive tutorial on the basics of R from scratch, please check out the Software Carpentry R tutorial and/or Swirl

Your RStudio will look something like this:

RStudio Panes

You can write your code in the Source pane and press ctrl + enter to run the selected line(s). This is your scripting environment where you can save everything you are typing.

Alternatively, you can also write code in the Console pane and press enter to run as you were doing for the bash command line. The code in the console is not saved.

Any datasets you load or variables/functions you set will be visible in the Environments pane.

Any plots/documents that you render will be visible in the Output pane.

Setting up your R environment

New packages can be installed using install.packages("package_name")

Not all installed R packages are available by default. You can load packages using the library function.

The R working directory can be seen using the getwd() command

You can change the working directory using setwd("/path/to/dir")

install.packages(c("data.table","dplyr","tidyverse","ggplot2"))

library(dplyr)
library(tidyverse)
library(ggplot2)

getwd()

setwd("NWU_2025_workshop_data/test_datasets/results")

Download an example table

We learned about Enterobase in Module 3. On your browser, navigate to the Enterobase Salmonella page, and search for the serovar ‘Minnesota’. Download the assemblystats table and the Achtman 7 Gene MLST table.

Reading your data

We are using the function fread which is part of the data.table package to read a table.

To use functions in R, you call the name of the function, and enclose the different values the function will accept within parenthesis.

To access the help page for any function, type ? followed by the name of the function

?fread

fread is a function to quickly read .tsv or .csv files

Lets read in our Enterobase assemblystats table

enterobase_assemblystats<-fread(file="/path/to/20251020_enterobase_minnesota_assemblystats.tsv",header=T,sep="\t")

• fread(...) : Calling the fread function
• file="..." : Providing the path for the file to be read
• header=T: Stating that the file has a header (which is the first line in the csv or tsv that has all the column names). T is short for TRUE.
• sep="\t": Stating the delimiter in the file, since our file is tab separated, we set the delimiter as \t.
• enterobase_assemblystats<-: We are saving the read table to an object called enterobase_assemblystats . Once it is saved, it should appear in your Environment pane. You can click on it here and it will open a new tab in your Source pane where you can browse through the table.

Making simple plots using ggplot2

Ggplot is the most common R tool used for creating publication quality plots.

ggplot follows a consistent grammar (The gg in ggplot means grammar of graphics) making it very easy to build upon.

Apart from the default ggplot options, there are several additional packages using the ggplot grammar such as ggtree, ggside, ggsignif and many others that are all very helpful in scientific data visualization. ggplot can make (almost) any kind of plot you can think of!

Making a histogram using ggplot2

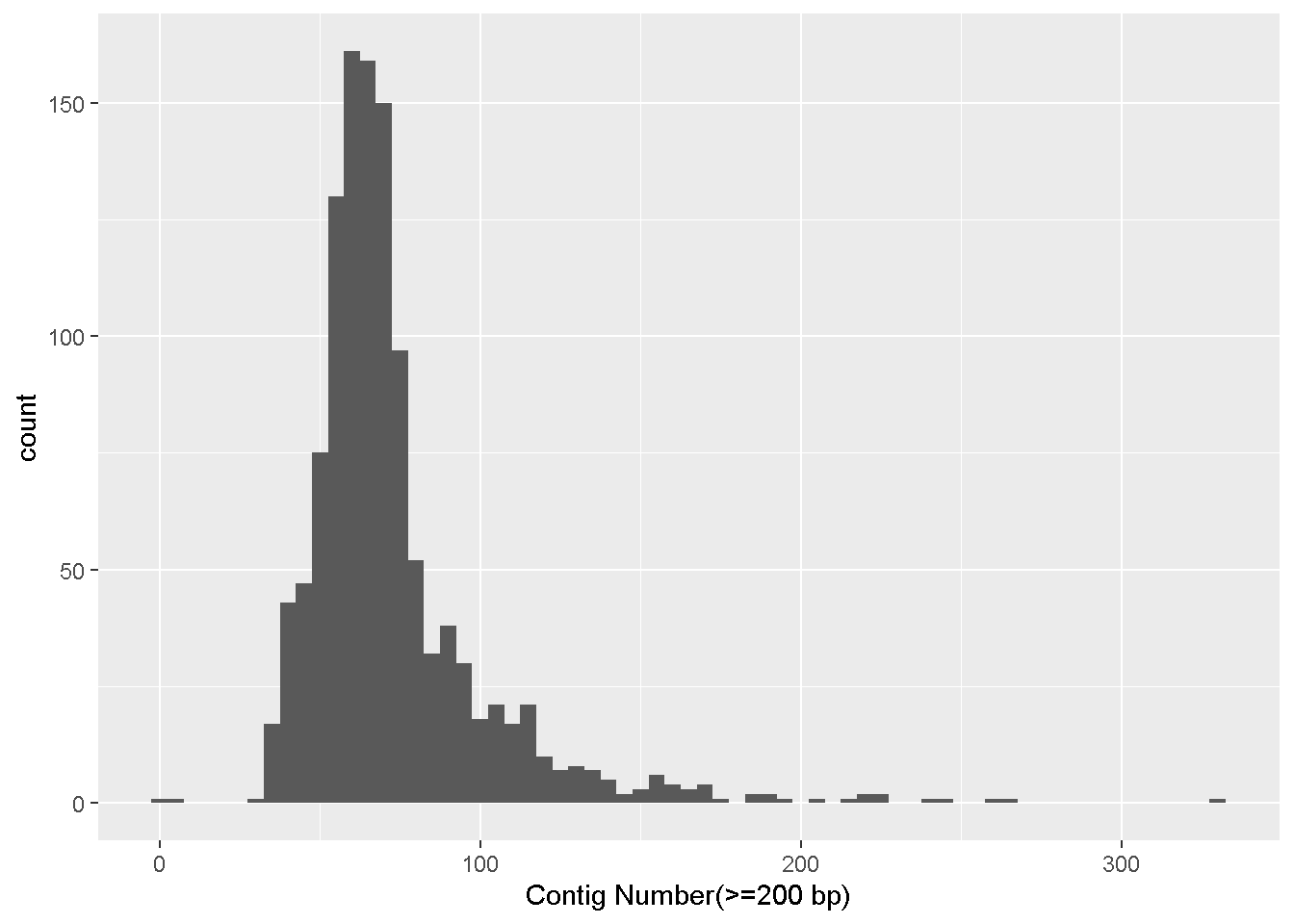

Lets make a simple histogram showing the distribution of the number of contigs in our dataset

ggplot(data = enterobase_assemblystats,aes(x=`Contig Number(>=200 bp)`))+
  geom_histogram(binwidth = 5)

• ggplot() : Calling the ggplot function
• data = enterobase_assemblystats: The data that we want to use, here it is enterobase_assemblystats, which is the enterobase table that we read
• aes() : These are the mapping aesthetics (i.e which column of the input dataset we want our x and y axes to be)
  • x=`Contig Number(>=200 bp)` : The name of the column we want on the x axis.
  • Unfortunately, the table has column names with spaces and special characters like (>=) which can have different special meaning. So we have to take some extra steps to make sure the column names are read properly.
  • Here we enclose the column name in `` - these are called “backticks”.
  • Now, the column name will be read literally and the special characters will not have special meanings.
  • Normally you could simply say x=column_name if your column names don’t have any special characters
• + geom_histogram(binwidth = 5) - Adding a new layer
  • In ggplot, the + symbol is used to signify the addition of a new layer. We used ggplot() to tell it what data to use, and now we use geom_ to tell it how to visually represent the data.
  • geom_histogram is the histogram function in ggplot.
  • binwidth = 5 is a value for the width of the histogram “bars” that geom_histogram accepts. This is the range of values that are represented by one bar in the histogram. Increase or decrease this number to see how it changes the plot!

Making a scatterplot using ggplot2

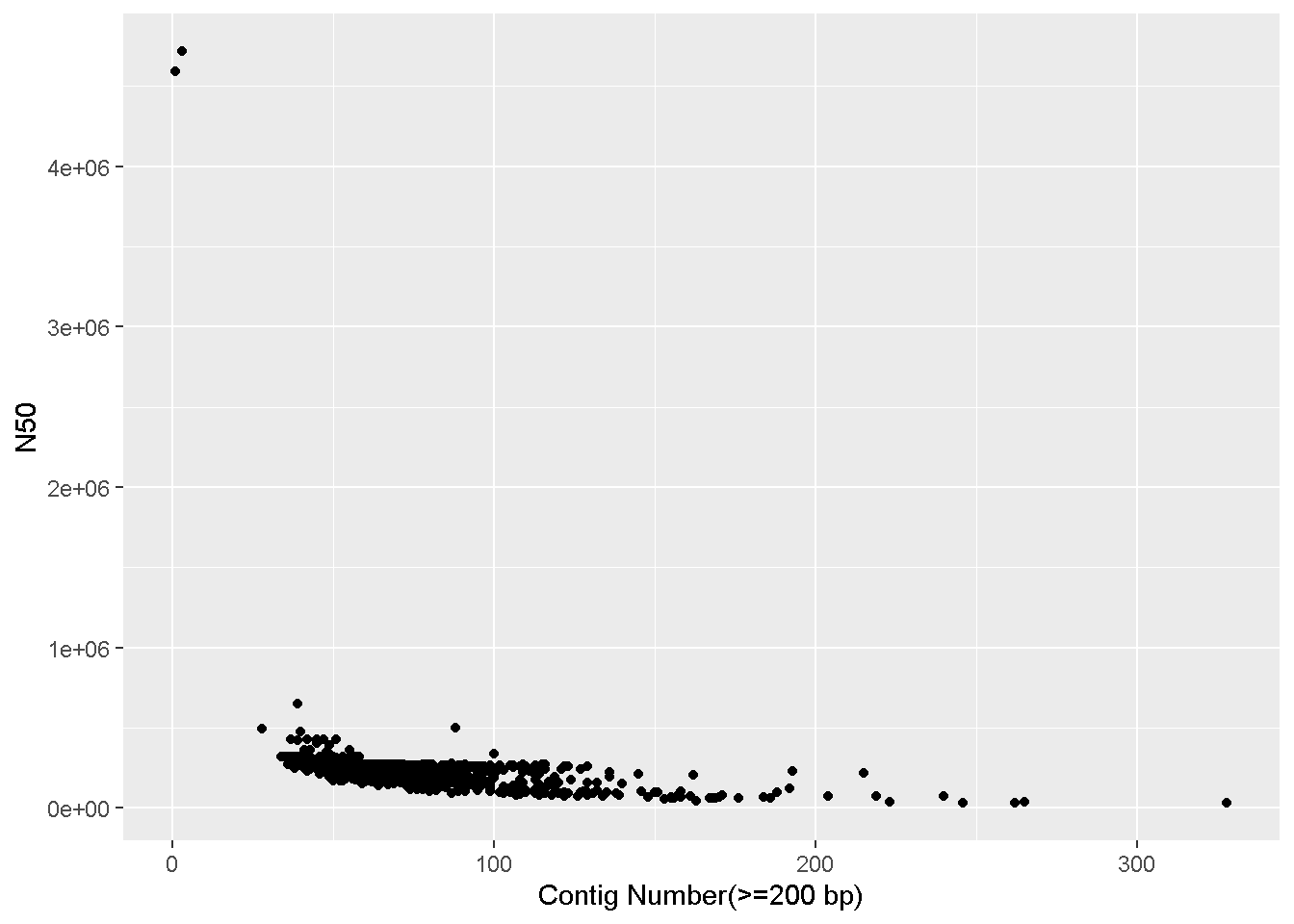

Make a scatter plot (geom_point) with the number of contigs on the x axis and the N50 value in the y axis

Click to reveal answer!

ggplot(data = enterobase_assemblystats,aes(x=`Contig Number(>=200 bp)`,y=N50))+
  geom_point()

• ggplot() : Calling the ggplot function
• data = enterobase_assemblystats: The data that we want to use, here it is enterobase_assemblystats, which is the QUAST output table that we read
• aes() : These are the mapping aesthetics (i.e which column of the input dataset we want our x and y axes to be)
  • x=`Contig Number(>=200 bp), y=N50` : The name of the columns we want on the x and y axes.
• + geom_point() - Adding the scatterplot function in ggplot

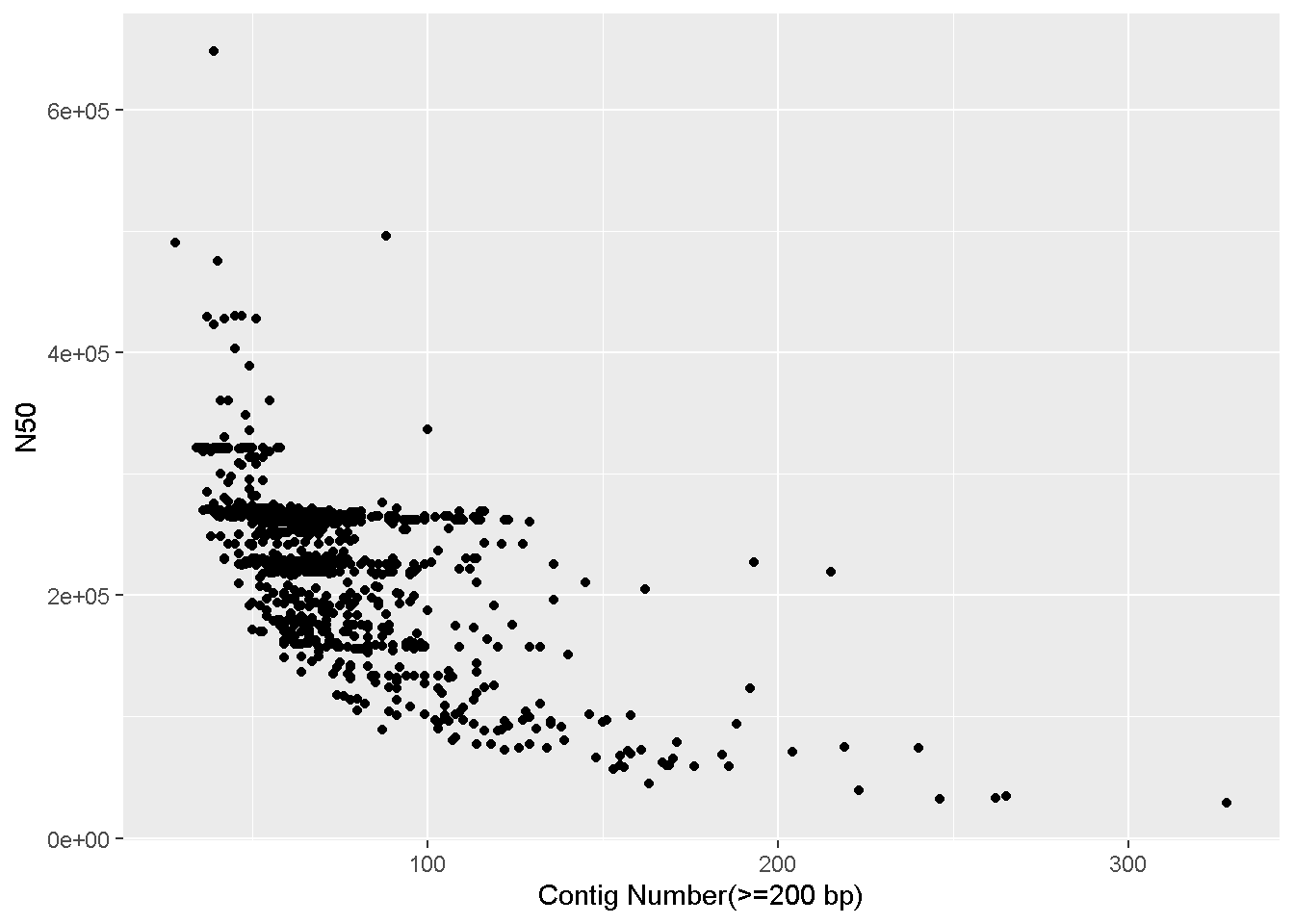

• Looks like there are two complete genomes in the table with very high N50 values that’s throwing off the scale!

• We can make the plot with only samples having N50 values less than 4 million (<4e+06).

• This means we have to subset the enterobase_assemblystats table, only keeping rows where the N50 column has a value less than 4 million

• We can do this like so:

enterobase_assemblystats[enterobase_assemblystats$N50 < 4e+06,]

• enterobase_assemblystats$N50 : The $ sign is used to call a specific column within the dataframe. Here we are calling the “N50” column.
• < 4e+06 means ‘less than 4 million’. This is our condition
• enterobase_assemblystats$N50 < 4e+06 : Type this in the console and look at the output! You will see a list (in R, this is called a vector) of ‘TRUE’ and/or ‘FALSE’ values. It is telling us for which rows the above condition (i.e, N50 < 4 million) is TRUE (or FALSE)
• But we don’t just want to know for which rows the condition is TRUE for, we want to filter the dataframe such that we get all the rows where the condition is true.
• enterobase_assemblystats[enterobase_assemblystats$N50 < 4e+06,] : This is how you filter a dataframe in R.
  • The format is dataframe[rows,columns]
  • The rows we want and the columns we want are split by a comma
  • Instead of rows - we have our condition which is all the rows where N50 < 4e+06.
  • We are not filtering by columns, we want all columns so we leave it blank. That’s why there is nothing after the comma

BONUS: Filter by columns too!

    `enterobase_assemblystats[enterobase_assemblystats$N50 < 4e+06,c(1,4,7)]` will print only the first, fourth and seventh column of the dataframe. After the **comma** we specify the columns we want, enclosed in `c()`.
    You can run `colnames(dataframe)` to see the names of all the columns (and the column number). Run `colnames(enterobase_assemblystats)` on the console and find the number for the N50 column!

We can thereby alter the ggplot command this: Note that it is identical to the previous ggplot command, we have only changed what we give as input to data.

ggplot(data = enterobase_assemblystats[enterobase_assemblystats$N50<4000000,],aes(x=`Contig Number(>=200 bp)`,y=N50))+
  geom_point()

Try playing around with different x and y axes, and also different filters. You can also add a color / fill to aes to colour your datapoints/bars based on a specific factor.

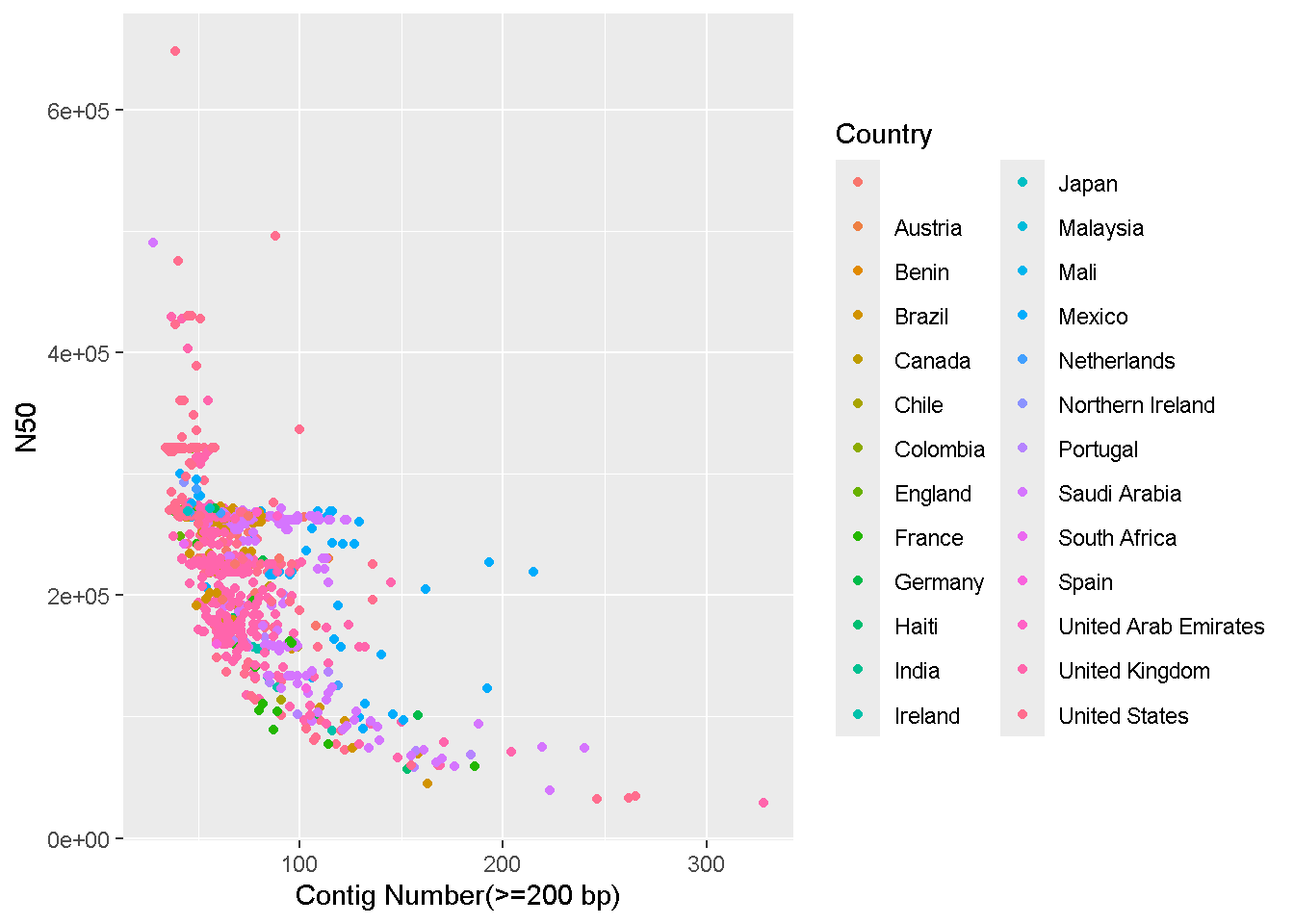

EXERCISE: Remake the N50 vs Number of contigs scatter plot colouring the points by ‘Country’ !

Click here to see the answer!

ggplot(data = enterobase_assemblystats[enterobase_assemblystats$N50<4000000,],aes(x=`Contig Number(>=200 bp)`,y=N50,color=Country))+
  geom_point()

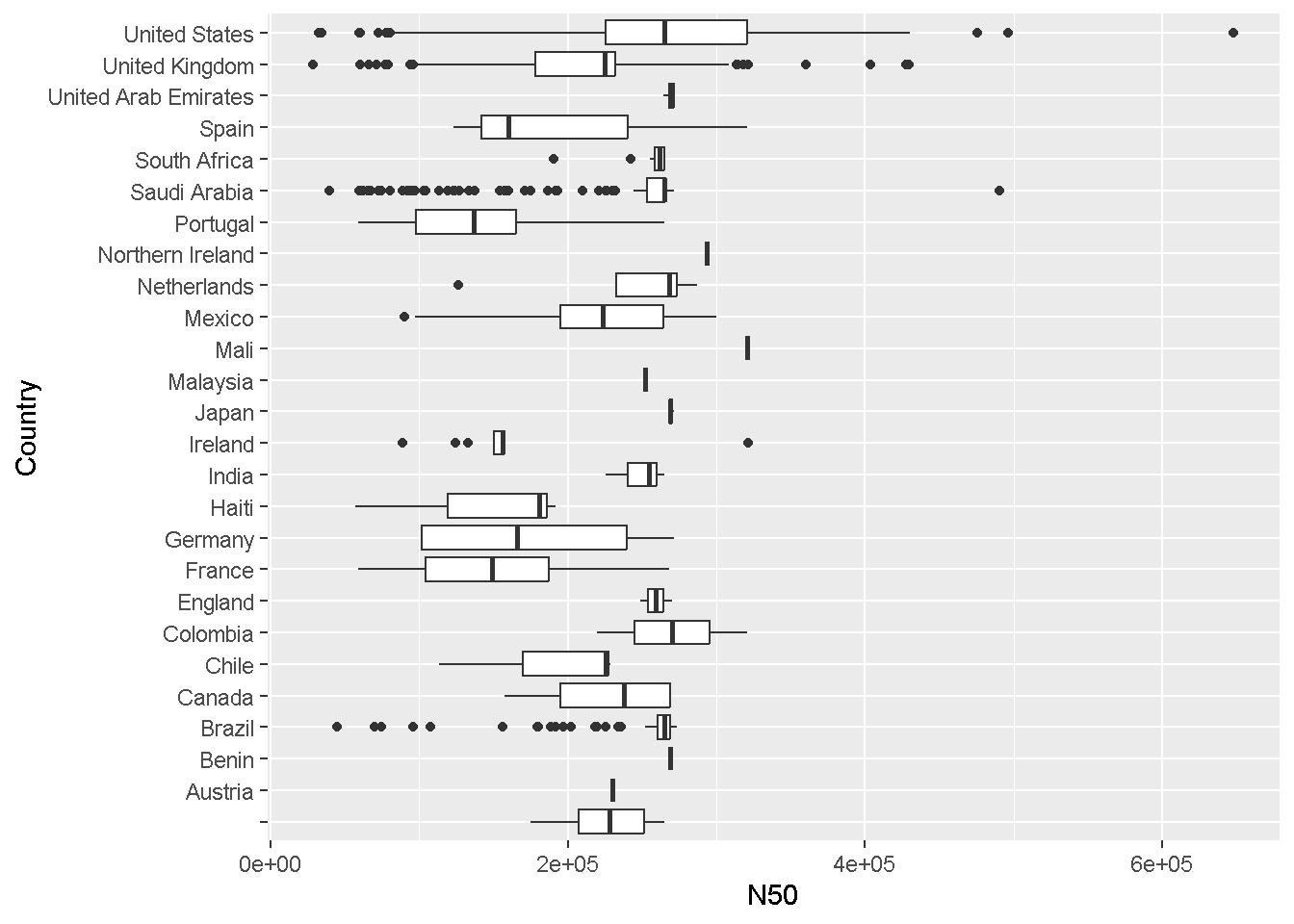

EXERCISE: Make a boxplot showing the distribution of N50 values per country using geom_boxplot

Click here to see the answer!

ggplot(data = enterobase_assemblystats[enterobase_assemblystats$N50<4000000,],aes(x=N50,y=Country))+
  geom_boxplot()

Data cleaning/wrangling

We saw how to subset/filter a dataframe. Lets look at some more examples

Get rid of NAs

You will see that your enterobase table has many missing or “NA” values. We can select only specific rows that do not have missing values. For eg: Lets select only the “Uberstrain”,“Source Niche”, “Collection Year”, “Country”, and “Sample ID” columns and remove all rows with ‘NA’ such that only rows where all four columns have values will be present

• First select only the columns we want. Use colnames(enterobase_assemblystats) to get the column numbers for our desired columns (alternatively you can also specify the names in quotes separated by commas within c() ).

• Write the subsetted dataframe to a new dataframe using <-

  enterobase_assemblystats_filtered<-enterobase_assemblystats[,c(1,5,8,13,29)]

• Now remove all “NA” values from the new dataframe.

  enterobase_assemblystats_filtered<-enterobase_assemblystats_filtered[complete.cases(enterobase_assemblystats_filtered)]

Cleaning non-standard column values (“unknown” “Unknown” “ND”)

You can see in the ‘Source Niche’ column in the filtered dataframe that there are still some blank values that did not get marked appropriately as ‘NA’. There are also some columns marked ‘ND’ which is effectively the same as a missing value. These types of errors are common with public data which is why you must always double check after filtering.

How do you check if all the values in a column are OK?

An easy trick is to use the table command, which produces frequency tables. That is, it prints out every value in a column along with the number of times that value has occurred.

table(enterobase_assemblystats_filtered$`Source Niche`)

                      Animal Feed Companion Animal      Environment
              62               12                1               60
            Food            Human        Livestock               ND
             261              154               29               20
         Poultry      Wild Animal
              82                2

Here we can see a blank value has occurred 62 times and “ND” has occurred 20 times in the filtered set. Lets remove all rows where the “Source Niche” column has value = “” (blank) or = “ND”

enterobase_assemblystats_filtered<-enterobase_assemblystats_filtered[!enterobase_assemblystats_filtered$`Source Niche` %in% c("","ND"),]

• Here, we followed the same format for filtering the dataframe as we did with the N50 values: dataframe[rows,columns]
• For the rows, we entered !enterobase_assemblystats_filtered$`Source Niche` %in% c("","ND")
  • ! means NOT , so by starting the condition with !, we are saying “For rows where the following condition is NOT TRUE
  • enterobase_assemblystats_filtered$`Source Niche` : Refers to the “Source Niche” column, enclosed in backticks because of the space character
  • %in% c("","ND") : means if the value is in the list c("","ND") - which are the values we are looking for (“” is blank, and “ND” is ND)
  • So the full command means, Get all rows from the dataframe “enterobase_assemblystats_filtered” IF the value in the “Source Niche” column is NOT “” or “ND”

Filter your dataframe as you read the table

Alternatively, if you know what you are looking for, you can appropriately specify what values should be counted as NA right when you read your dataframe using the na.strings= option.

enterobase_assemblystats<-fread("/home/vishnu/UmeaU_backup/NWU_2025_workshop/NWU_2025_workshop_data/test_datasets/20251020_enterobase_minnesota_assemblystats.tsv",na.strings = c("ND","","Unkown","unknown"))

Merging data tables

You can merge two different data frames by a common column using merge

Read in the enterobase 7 Gene MLST table you downloaded

The advantage with fread is that you can select exactly which columns to read in right at the start so that the whole table isn’t read. In our case, we only want column 1 and 34, so we specify that as select = c(1,34).

enterobase_mlst<-fread(file="/path/to/20251020_enterobase_minnesota_mlst.tsv",header=T,sep="\t",select = c(1,34))

Lets merge the MLST table with our filtered assemblystats table using the merge command

enterobase_assemblystats_mlst_merged<-merge(enterobase_assemblystats_filtered,enterobase_mlst,by="Uberstrain")

• The merge function is used like so: merge(dataframe_1,dataframe_2,by="column_name")
• As long as the column name specified is the same for both our dataframes (in our case both columns are named “Uberstrain”), it will merge, keeping only values common in both dataframes.

Adding a column by condition

You can add a new column based on a specific condition using the mutate function. For example lets say we want a column called ‘is_human’ which will have the values “yes” if “Source Niche” equals “Human” and “no” if not.

enterobase_assemblystats_mlst_merged<-mutate(enterobase_assemblystats_mlst_merged, is_human = if_else(`Source Niche` == "Human", "yes", "no"))

• We used the mutate function like so: mutate(dataframe, <name for new column> = <value for new column>)
• We named the new column is_human , and used an if_else condition for the value
• if_else(`Source Niche` == "Human", "yes", "no") : if_else(<CONDITION>,<What to do if TRUE>,<What to do if FALSE>)
  • Here the CONDITION is IF “Source Niche” equals (==) “Human”. If true, then the value for the new column is_human is “yes”, else, the value is “no”

Group by and summarize

If you want the mean of a column, say N50, you can simply do:

mean(enterobase_assemblystats$N50, na.rm = TRUE)

[1] 238868.8

The na.rm option is to remove the NA values.

But what if you want the mean N50 value for each country? That is where the function group_by is used

enterobase_assemblystats %>% group_by(Country) %>%  summarise(mean_N50_per_country = mean(N50, na.rm = TRUE))

# A tibble: 26 × 2
   Country    mean_N50_per_country
   <chr>                     <dbl>
 1 ""                      455326.
 2 "Austria"               230209
 3 "Benin"                 268875
 4 "Brazil"                252957.
 5 "Canada"                225783.
 6 "Chile"                 189261
 7 "Colombia"              270202.
 8 "England"               259390
 9 "France"                153003.
10 "Germany"               175992.
# ℹ 16 more rows

• %>% is similar to the | (pipe) character in bash.
• enterobase_assemblystats %>% group_by() pipes the enterobase_assemblystats table to the group_by function
• group_by(Country) %>% : we want to group the different rows from the input by the “Country” column. This creates as many “groups” as there are countries. When we pipe this out, each “group” will be treated separately.
• summarise(mean_N50_per_country = mean(N50, na.rm = TRUE)) :
  • We piped the “groups” to the summarise function, which will now provide a “summary” for each group.
  • We are asking it to create a new column mean_N50_per_country
  • mean(N50, na.rm = TRUE) is the same mean function we used above. We are using the mean function to get the mean of N50 values while removing any missing values using na.rm=TRUE
• This provides an output of “Grouped” means, each group being a country.

Sources and further reading

• Enterobase: https://enterobase.warwick.ac.uk/
• GGplot2 Essentials from STHDA: https://www.sthda.com/english/wiki/ggplot2-essentials
• R Graph Gallery: https://r-graph-gallery.com/ggplot2-package.html
• Software Carpentry R course: https://swcarpentry.github.io/r-novice-gapminder/index.html
